As a supplier of Pipeline Molds, I've encountered various challenges related to mold surface roughness over the years. In this blog, I'll delve into the problems associated with pipeline mold surface roughness and discuss effective ways to adjust it.
Problems Caused by Pipeline Mold Surface Roughness
1. Product Quality Issues
The surface roughness of a pipeline mold directly impacts the quality of the pipes produced. When the mold surface is too rough, it can lead to visible defects on the pipe's outer surface. These defects include unevenness, scratches, and pits, which not only affect the aesthetic appearance of the pipes but also compromise their structural integrity. For instance, in Cement Pipe Mold applications, rough mold surfaces can cause the cement pipes to have inconsistent wall thickness, reducing their strength and durability.
2. Release Difficulties

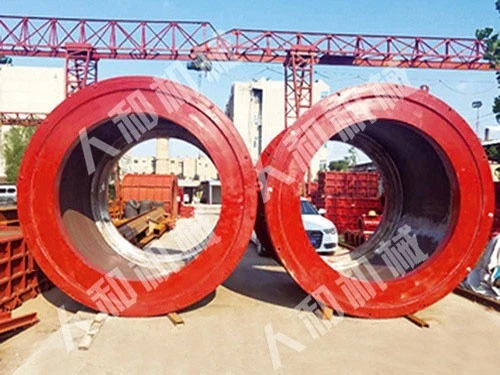

Rough mold surfaces can make it extremely difficult to release the pipes from the mold after the casting process. The increased friction between the pipe and the mold surface requires more force to remove the pipe, which can lead to damage to the pipe or the mold itself. This not only increases the production time but also raises the cost of production due to potential mold repairs and pipe rejections. In the case of Socket - and - Spigot Cement Pipe Mold, improper release can cause misalignment of the socket and spigot, rendering the pipe unusable.
3. Reduced Mold Lifespan
The friction caused by rough mold surfaces also accelerates the wear and tear of the mold. As the pipes are repeatedly cast and removed from the mold, the rough surface experiences more abrasion, leading to a shorter lifespan of the mold. This means that the mold needs to be replaced more frequently, which is a significant cost for the production process. For pipeline manufacturers, this can disrupt the production schedule and increase the overall cost of production.
4. Inconsistent Dimensional Accuracy
Surface roughness can also affect the dimensional accuracy of the pipes. The uneven surface of the mold can cause variations in the thickness and diameter of the pipes, leading to non - compliance with industry standards. This is particularly critical in applications where precise dimensions are required, such as in Pipeline Mold for high - pressure pipelines. Inaccurate dimensions can result in leaks, reduced flow capacity, and even system failures.
Factors Affecting Pipeline Mold Surface Roughness
1. Material Selection
The choice of material for the pipeline mold plays a crucial role in determining its surface roughness. Some materials are more prone to developing a rough surface during the manufacturing process or due to wear and tear. For example, lower - quality steel may have impurities or a less uniform grain structure, which can lead to a rougher surface. Additionally, the hardness of the material affects its resistance to abrasion. Softer materials are more likely to wear down quickly, increasing the surface roughness over time.
2. Manufacturing Process
The manufacturing process of the pipeline mold can also introduce surface roughness. Machining operations such as turning, milling, and grinding can leave tool marks on the mold surface if not performed correctly. Improper cutting parameters, such as feed rate, cutting speed, and depth of cut, can result in a rough surface finish. Heat treatment processes can also affect the surface roughness if the cooling rate is not controlled properly, leading to the formation of uneven microstructures on the mold surface.
3. Working Environment
The working environment in which the pipeline mold operates can have a significant impact on its surface roughness. Exposure to harsh chemicals, high temperatures, and abrasive particles can cause corrosion and erosion of the mold surface, increasing its roughness. For example, in a sewage pipe manufacturing plant, the mold may be exposed to corrosive chemicals in the sewage, which can gradually damage the mold surface.
4. Maintenance Practices
Poor maintenance practices can also contribute to the deterioration of the mold surface. Failure to clean the mold regularly can allow the accumulation of debris and residues, which can scratch the surface during the casting process. Inadequate lubrication can also increase the friction between the pipe and the mold, leading to a rougher surface over time.
Adjusting Pipeline Mold Surface Roughness
1. Surface Finishing Techniques
One of the most common ways to adjust the surface roughness of a pipeline mold is through surface finishing techniques. Polishing is a widely used method to reduce surface roughness. By using abrasive materials such as sandpaper, polishing compounds, and buffing wheels, the rough peaks on the mold surface can be removed, resulting in a smoother finish. Grinding can also be used to correct any major surface irregularities before polishing. Electro - polishing is another effective technique that uses an electrochemical process to remove a thin layer of material from the mold surface, achieving a very smooth and uniform finish.
2. Coating Applications
Applying a coating to the mold surface can also help to reduce surface roughness and improve its performance. Coatings such as ceramic, nitride, and polymer coatings can provide a smooth and hard surface that is resistant to wear, corrosion, and adhesion. These coatings can not only reduce the friction between the pipe and the mold but also protect the mold from the harsh working environment. For example, a ceramic coating can provide excellent thermal insulation and chemical resistance, making it suitable for molds used in high - temperature and corrosive environments.
3. Optimizing Manufacturing Processes
To prevent the development of rough surfaces during the manufacturing process, it is essential to optimize the machining and heat treatment parameters. Using the appropriate cutting tools and correct cutting parameters can minimize tool marks and achieve a better surface finish. For heat treatment, precise control of the heating and cooling rates can ensure a uniform microstructure on the mold surface, reducing the likelihood of surface roughness.
4. Regular Maintenance
Regular maintenance is crucial to maintaining the surface roughness of the pipeline mold. Cleaning the mold after each use can prevent the accumulation of debris and residues. Applying a suitable lubricant can reduce the friction between the pipe and the mold, minimizing wear and tear. Inspecting the mold regularly for signs of damage or wear and performing timely repairs can also help to maintain its surface quality.
Conclusion
Pipeline mold surface roughness is a critical issue that can have a significant impact on the quality of the pipes produced, the efficiency of the production process, and the lifespan of the mold. As a Pipeline Mold supplier, we understand the importance of addressing this issue. By understanding the problems caused by surface roughness, the factors affecting it, and the methods to adjust it, we can provide our customers with high - quality molds that meet their production needs.
If you are in the market for high - quality pipeline molds or need assistance with mold surface roughness issues, we invite you to contact us for a consultation. Our team of experts is ready to help you find the best solutions for your pipeline manufacturing needs.
